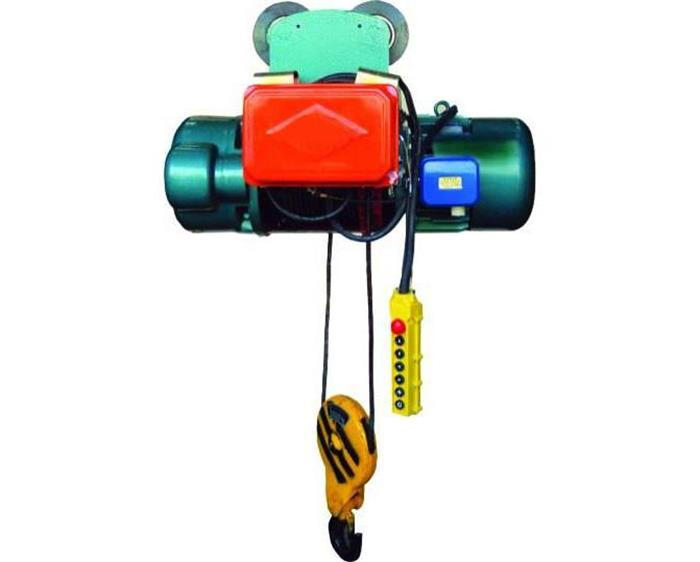

Product Description
TYPE CD1/MD1 wire-rope Electric Hoist is a kind of small-lifting equipment.It can mounted on single beam overhead cranes.Gantry Cranes, Jib Type CD,electric hoist as only one normal speed which can satisfy normal application. It is widely used in factories, mines, harbors, cargo storage area and shops,essential in raising working efficiency and improving working conditions. We can provide Electric Wire Rope Hoist with motorized Trolley , remote control and other hoist accessories.
Features:
1. The normal travelling speed: 20m/min (dual speed 20/6 is optional)
2. Hoist electrics cubicle including low voltage transformer
3. Motor protection IP54 insulation class F
4. Push button box with emergency button
5. Rope guide for use in aggressive environment
6. Remote control is optional, Hook with safety latch
7. hoist is made under the FEM European standard, with planetary gearbox(low noises and free maintenance).
8. The motor and gearbox are installed at the same side, help the hoist to run smoothly and increase of service life.
Specifications:
Model
CD1 0.5T
CD1 1T
CD1 2T
CD1 3T
CD1 5T
CD1 10T
CD1 16T
CD1 20T
CD1 25T
CD1 32T
Capacity (t)
0.5
1
2
3
5
10
16
20
25
32
Lifting height (m)
6-12
6-30
6-30
6-30
6-30
9-30
9-18
9-18
9-24
9-24
Lifting speed (m/min)
8
8
8
8
8
7
3.5
3.5
2.4
2.4
Running speed (m/min)
20
20
20
20
20
20
20
20
20
-
Wire rope type
D-6X37+1
D-6X37+1
D-6X37+1
D-6X37+1
D-6X37+1
D-6X37+1
D-6X37+1
D-6X37+1
D-6X37+1
D-6X19+1
I-beam track type
16-28b
16-28b
20a-32c
20a-32c
25a-63c
25a-63c
45a-63c
50a-63c
50a-63c
50a-63c
Min. radius of curve (m)
1.5
1.5-4
2-4
2-4
2.5-5
2.5-9
3-4.6
3-4.6
3-4.6
Power supply
380V-440V,50/60HZ,3P
Working duty
Mid M3
Mid M3
Mid M3
Mid M3
Mid M3
Mid M3
Mid M2
Mid M2
Light M6
Light M3

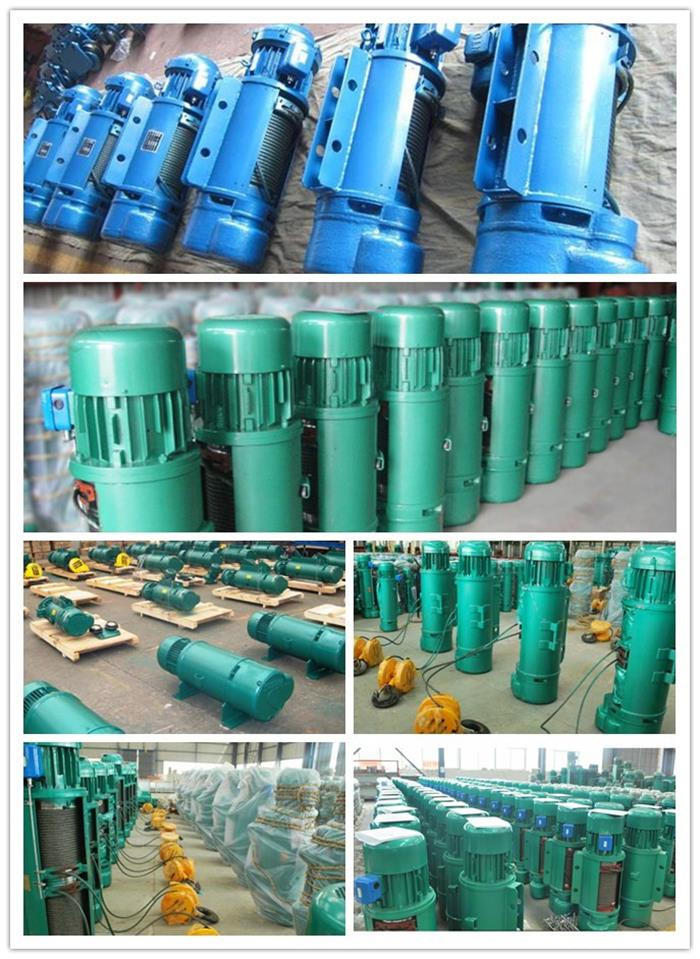

Product Photos:
FAQ:
What is our factory product range?
1) We are specialize in chain block, lever block, electric hoist, Webbing Sling, cargo lashing,
Hydraulic Jack, forklift, mini crane, etc.
2) Hoist Accessories: Load Chain , wire rope, Rigging , hook ,pulley and shackles.
How to order the products?
Send the inquiry with detail item description or with ITEM number. Tell us the quantity you need, the size of goods, and the packing.
If there is no packing demand we take it as seaway packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
About sample:
About payment:
About lead time:
usually within 35-40 days after receipt of your deposit.
How Will My Order Be Shipped?
How long does it take to receive my order?
To West of American 20 days. To Asia 7 days or more.
To Middle East more 30 days.
By air or by courier will be faster, within 7 days.
What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
Our Services
1.Client
We treasure and try to understand all the different needs of our clients and seek to forge a long term professional relationship with them. The satisfaction of each and every customer is our main goal and motivation in conducting our business.
2. People
We work as a team and treat each other with respect. Our solid, capable and knowledgeable team is valued as the greatest asset and an integral part of the business.
3. Product
Our products are of HIGH quality standards and always come with certificate of compliance by the manufacturers.
4. Performance
We aim to achieve high level of performance and satisfaction to both our client and people, which include delivering high quality services and treating people with integrity.
5. Free sample and OEM service
We can provide free samples to you and we also have OEM service, we can put your logo on the label and the information you need on the webbing too.
Electric Wire Rope Hoist Electric Wire Rope Hoist,Electric Wire Rope Hoist Drum,Wire Rope Hoist Load,Electric Wire Rope Hoist Winch Hebei Liston Lifting Rigging Manufacturing Co., Ltd. , http://www.liftingriggingfactory.com
Application:
The function of GCC series pipeline flushing machine is to remove pollutants caused by pipeline construction (installation) process to improve system's cleanliness so as to keep oil cleanliness within the contamination tolerance level of the key hydraulic components to guarantee the hydraulic system' s working reliability and components' service life. It is the necessary measures to clearing or minimise initial fault.
Our GCC series pipeline flushing machine is a pipeline washing equipment designed for the pipe flushing and load test of hydraulic system especially applied to shipbuilding and metallurgical industry. It has the advantages like beautiful appearance, compact structure, convenient operation, reliable performance, low working noise, etc. It is particularly suitable for offline washing and test operation of hydraulic system pipelines in large ships and metallurgical equipment. It is suitable for purifying media such as hydraulic oil, lubricating oil, diesel, etc.
This machine consists of large flow capacity pump, oil tank, purification system, heater, meter, electric control cabinet, sampling valve, and other components. During running the machine, connect its inlet and outlet respectively to the inlet of oil supply mains on oil system tank and system to be flushed with temporary pipes to built a temporary circulatory system. The oil liquid is absorbed by large flow capacity pump from bottom of oil tank and finally turns back into the oil tank through pipeline one-way valve, pressure overflow regulating valve, system to be washed, first filter and second filter step by step. The oil flow flushes and circulates in the pipelines at a certain pressure and flow rate, impacts and breaks off the adhering contaminants on the inner wall of pipelines, then the adhering contaminants shall be removed by coarse and fine filters. By purification functions of filters and continuous purification while flushing, cleanness of oil in the pipeline meets the requirements of operation standard. And online particle detector can be its optional components as per user's requirements.
Technical Specifications:
Item
Unit
LSGCC-400
LSGCC-600
LSGCC-800
LSGCC-1000
LSGCC-1600
LSGCC-2400
Max.Flushing Rate
L/min
400
600
800
1000
1600
2400
Flushing Pressure
MPa
≤4(The specific pressure value can be customized.)
Filtering Stages
-
2Â stages.
Filtration Precision
-
Level 6~8(NAS1638)
Motor Power
KW
22
37
45
74
110
150
Heating Power
KW
20
30
30
40
45
45
Total Power
KW
42
67
75
114
155
195
Power Supply
V
380V/50Hz(can be customized.)
Overall Dimensions(L×W×H)
mm
1000×1200×1500
2000×1400×1800
2600×2000×2000
2800×200×2000
3100×2050×2000
3500×2050×2000
Max. Pipeline Diameter
mm
80
90
100
150
200
200
Note: The maximum pipeline diameter is the theoretical value to ensure hydraulic oil at turbulent flow status in the pipelines.
Above size and weight of this machine are for reference only, the specific data shall be subject to its physical object.
Â
Application:
The function of GCC series pipeline flushing machine is to remove pollutants caused by pipeline construction (installation) process to improve system's cleanliness so as to keep oil cleanliness within the contamination tolerance level of the key hydraulic components to guarantee the hydraulic system' s working reliability and components' service life. It is the necessary measures to clearing or minimise initial fault.
Our GCC series pipeline flushing machine is a pipeline washing equipment designed for the pipe flushing and load test of hydraulic system especially applied to shipbuilding and metallurgical industry. It has the advantages like beautiful appearance, compact structure, convenient operation, reliable performance, low working noise, etc. It is particularly suitable for offline washing and test operation of hydraulic system pipelines in large ships and metallurgical equipment. It is suitable for purifying media such as hydraulic oil, lubricating oil, diesel, etc.
This machine consists of large flow capacity pump, oil tank, purification system, heater, meter, electric control cabinet, sampling valve, and other components. During running the machine, connect its inlet and outlet respectively to the inlet of oil supply mains on oil system tank and system to be flushed with temporary pipes to built a temporary circulatory system. The oil liquid is absorbed by large flow capacity pump from bottom of oil tank and finally turns back into the oil tank through pipeline one-way valve, pressure overflow regulating valve, system to be washed, first filter and second filter step by step. The oil flow flushes and circulates in the pipelines at a certain pressure and flow rate, impacts and breaks off the adhering contaminants on the inner wall of pipelines, then the adhering contaminants shall be removed by coarse and fine filters. By purification functions of filters and continuous purification while flushing, cleanness of oil in the pipeline meets the requirements of operation standard. And online particle detector can be its optional components as per user's requirements.
Technical Specifications:
Item
Unit
LSGCC-400
LSGCC-600
LSGCC-800
LSGCC-1000
LSGCC-1600
LSGCC-2400
Max.Flushing Rate
L/min
400
600
800
1000
1600
2400
Flushing Pressure
MPa
≤4(The specific pressure value can be customized.)
Filtering Stages
-
2Â stages.
Filtration Precision
-
Level 6~8(NAS1638)
Motor Power
KW
22
37
45
74
110
150
Heating Power
KW
20
30
30
40
45
45
Total Power
KW
42
67
75
114
155
195
Power Supply
V
380V/50Hz(can be customized.)
Overall Dimensions(L×W×H)
mm
1000×1200×1500
2000×1400×1800
2600×2000×2000
2800×200×2000
3100×2050×2000
3500×2050×2000
Max. Pipeline Diameter
mm
80
90
100
150
200
200
Note: The maximum pipeline diameter is the theoretical value to ensure hydraulic oil at turbulent flow status in the pipelines.
Above size and weight of this machine are for reference only, the specific data shall be subject to its physical object.
Â
Cost with free if the quantity small, and the express charge account into buyer`s.
T/T, LC in U.S. Dollars or EUR, for small orders, PayPal is ok.
Cause all of our products manufacturer according customers order,
Usually shipped by sea, small order or urgent order can by air or by courier after received your agreement.
According the distance from China to your port. Usually from China to European about 22 days.
About mini order:
Different products with different limited, please contact us to confirm.
