In the realm of metal fabrication, the Hydraulic Pipe Bending Machine stands out as a robust and adaptable tool, widely utilized for shaping pipes, tubes, and other metallic structures. Industries such as automotive, construction, shipbuilding, and furniture manufacturing rely heavily on these machines for their precision, reliability, and efficiency. The ability to form intricate curves, angles, and shapes without compromising the structural integrity of the material is what makes pipe bending an essential process. This article delves into the multifaceted world of Hydraulic Pipe Bending Machines, exploring their design, operating principles, notable features, types, and the pivotal role they play in various industrial applications. We'll also examine the common uses of these machines and why they're indispensable in sectors demanding exacting pipe and tube bending.
What exactly is a Hydraulic Pipe Bending Machine?
A Hydraulic Pipe Bending Machine is specifically engineered to bend metal pipes and tubes using hydraulic power. This system generates the force required to shape pipes to the desired angle, all while preserving the material's strength and integrity. These machines can accommodate a broad spectrum of materials, including steel, stainless steel, aluminum, copper, and various alloys.
Unlike traditional manual or mechanical pipe bending techniques, hydraulic machines provide superior precision and can handle larger and thicker pipes, making them perfect for industries requiring high-performance bending operations. The hydraulic system ensures smooth and controlled bending, minimizing the risk of cracks, wrinkles, or other imperfections in the pipe.
How does a Hydraulic Pipe Bending Machine operate?
Hydraulic pipe bending machines utilize a hydraulic system to generate the pressure needed for bending pipes or tubes. The bending process involves placing the pipe or tube between a set of dies and applying pressure to achieve the desired angle. The hydraulic system governs the movement of the dies, ensuring a smooth, precise, and consistent bend.
Here's a simplified step-by-step explanation of how the machine functions:
1. **Positioning the Pipe**: The pipe or tube is placed on the bending die, which holds the pipe securely in place and prevents it from slipping during the bending process.
2. **Clamping the Pipe**: Once the pipe is correctly positioned, a clamping mechanism secures it firmly in place, ensuring it doesn't move during the bending operation.
3. **Applying Hydraulic Pressure**: The hydraulic system applies pressure, pushing a bending die or roller against the pipe to bend it. The force applied by the hydraulic system is adjustable, allowing for different bending angles and radii based on the pipe’s material and thickness.
4. **Bending the Pipe**: As pressure increases, the pipe bends around the die, achieving the desired angle. The machine controls the speed and force of the bending process, ensuring a smooth bend without any damage or deformities.
5. **Releasing the Pipe**: After the bending process is complete, the machine releases the pipe, which now has the desired bend. The operator can then inspect the bend for accuracy and quality.
Key Features of Hydraulic Pipe Bending Machines
Hydraulic pipe bending machines are packed with essential features that make them indispensable for industrial applications requiring precise bending:
1. **Hydraulic Power System**: The heart of the machine, the hydraulic system provides the necessary force to bend pipes with precision. Hydraulic power ensures smooth, controlled movements, preventing material damage.
2. **Precision Bending Dies**: Equipped with various bending dies that can be swapped out according to the pipe's size and material, these dies ensure a uniform bend with no wrinkles or deformation.
3. **Adjustable Bending Angle**: Hydraulic pipe bending machines allow for flexible bending angles, enabling operators to create different curves and bends as needed. The bending angle can be preset, and the machine will automatically stop once the desired angle is achieved.
4. **Digital Control System (CNC Models)**: Many modern hydraulic pipe bending machines come with digital control systems, such as Computer Numerical Control (CNC), allowing for automated and highly precise bending operations. CNC machines can store and recall bending programs, making them ideal for repetitive tasks and mass production.
5. **Versatility in Pipe Materials**: Hydraulic pipe bending machines can handle a variety of materials, including steel, stainless steel, copper, aluminum, and other alloys. This adaptability makes them suitable for a wide range of industries.
6. **Multiple Bending Capabilities**: Some hydraulic pipe bending machines can perform multiple bends on a single pipe, enabling complex shapes and designs. This feature is particularly beneficial in industries that need intricate pipe structures, such as HVAC systems, automotive exhausts, and construction frameworks.
7. **Safety Features**: Most hydraulic pipe bending machines come with safety mechanisms like emergency stop buttons, overload protection, and automatic shut-off systems to ensure operator safety during the bending process.
Types of Hydraulic Pipe Bending Machines
Several types of hydraulic pipe bending machines cater to specific industry needs:

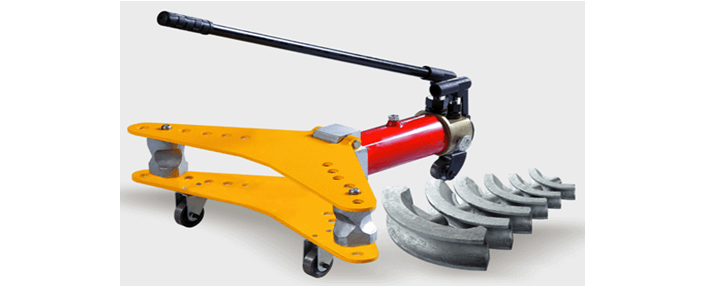

1. **Manual Hydraulic Pipe Bending Machine**: These machines use a hydraulic system but are operated manually. They are ideal for smaller operations where high precision isn't required. Affordable and widely used in small workshops and fabrication shops.

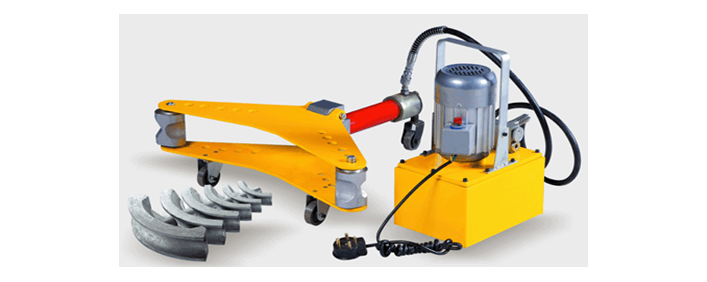

2. **Semi-Automatic Hydraulic Pipe Bending Machine**: Requiring some manual intervention but relying on hydraulic power for the bending process, these machines offer better precision than manual ones and are suitable for mid-range operations.
3. **Fully Automatic CNC Hydraulic Pipe Bending Machine**: Equipped with computer-controlled systems that automate the entire bending process, these machines are perfect for high-volume production environments where accuracy and consistency are crucial.
4. **Hydraulic Roll Bender**: Used for large-radius bends, these machines employ a rolling process to gradually bend the pipe, making them suitable for applications like building arches or large curved structures.
Applications of Hydraulic Pipe Bending Machines
Hydraulic pipe bending machines find application across numerous industries and fields that demand precise bending of pipes and tubes. Some of the most common applications include:
1. **Automotive Industry**: Widely used to manufacture exhaust systems, fuel lines, and other critical components in the automotive sector. The ability to bend pipes into precise shapes ensures optimal performance and safety in vehicles.
2. **Construction and Infrastructure**: Essential in the construction industry for fabricating steel pipes and tubes used in frameworks, scaffolding, pipelines, and HVAC systems. These machines enable precise bends that align with structural requirements.
3. **Shipbuilding**: Involves creating large and complex pipe systems for fuel, ventilation, and water lines. Hydraulic pipe bending machines are used to bend thick and durable materials like steel and stainless steel, ensuring pipes can withstand harsh marine environments.
4. **Aerospace Industry**: Precision is paramount in this sector. Hydraulic pipe bending machines create lightweight yet strong tubes and pipes for aircraft systems, including hydraulic and fuel lines. These machines guarantee consistent and defect-free bends, crucial for ensuring aircraft safety and performance.
5. **Furniture Manufacturing**: Also employed in metal furniture production, such as chairs, tables, and frames. The ability to bend pipes into appealing shapes while maintaining structural integrity is vital in the furniture industry.
6. **Plumbing and HVAC Systems**: Commonly used in plumbing and HVAC applications to create complex piping systems for water, heating, and air conditioning. These machines ensure precise bends that facilitate proper installation and function.
Advantages of Hydraulic Pipe Bending Machines
Using hydraulic pipe bending machines offers several benefits:
1. **Precision and Consistency**: Hydraulic pipe bending machines offer precise control over the bending process, ensuring each bend is consistent and accurate. This is especially important in industries like aerospace and automotive.
2. **Reduced Material Waste**: The precision provided by these machines minimizes the risk of material waste due to incorrect bends or deformities, helping industries save on material costs.
3. **Versatility**: Hydraulic pipe bending machines can handle a wide range of pipe materials and sizes, making them suitable for various applications across multiple industries.
4. **High Efficiency**: The use of hydraulic power ensures the bending process is efficient and requires less manual effort, boosting productivity and reducing labor costs.
5. **Safety and Reliability**: Designed with safety features to protect operators and ensure reliable operation, hydraulic pipe bending machines reduce the risk of pipe damage or failure, ensuring the durability of the final product.
Conclusion
The Hydraulic Pipe Bending Machine is an indispensable tool in industries that require precision bending of metal pipes and tubes. Its adaptability, precision, and ability to handle diverse materials make it essential for sectors such as automotive, construction, shipbuilding, aerospace, and manufacturing. With advanced features like CNC control, adjustable bending angles, and multiple bending capabilities, hydraulic pipe bending machines are crucial for producing high-quality, accurate bends in a variety of industrial applications. Investing in a hydraulic pipe bending machine can help companies enhance production efficiency, reduce material waste, and ensure the highest levels of precision in their bending operations, making it a vital asset for modern metalworking and fabrication.
