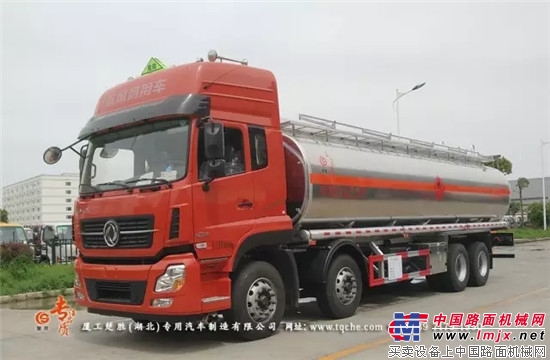

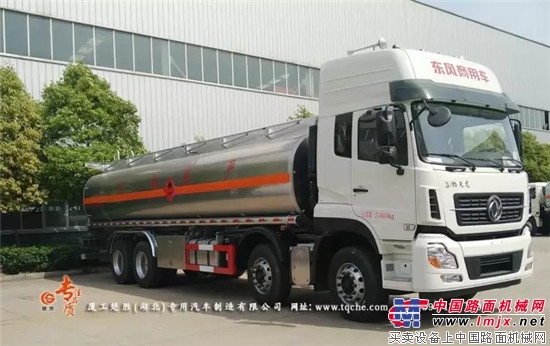

Company Name Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd. Product Name Aluminum Alloy Oil Truck Model CSC5312GYYLDV Vehicle parameters Dimensions (length × width × height) mm 11990 × 2500 × 3800 Inside the cargo compartment panel (length × width × height) mm Or volume m3 27.5 Curb weight kg 12470 Total mass kg 31000 Drive type 8X4 Chassis configuration and technical parameters Chassis manufacturer Dongfeng Commercial Vehicle Co., Ltd. Chassis type DFH1310A2 Engine manufacturer Dongfeng Cummins Engine Co., Ltd. Engine model ISL9.5-315E51A Transmission model 9JSD135TA Main reducer speed ratio (drive axle speed ratio) 4.440 Tire specifications model 12R22.5 18PR, 295/80R22.5 18PR Comprehensive fuel consumption L/100km 31.9 50km/h no-load constant-speed fuel consumption L/100km 17.7 Product trademark Chusheng Announcement batch 288 Product Name CSC5312GYYLDV Aluminum Alloy Oil Tanker Product No. ZMF4S59901X Total mass (Kg) 31000 Tank volume (m3) 27.5 Rated load mass (Kg) 18400, 18335 Dimensions (mm) 11990 × 2500 × 3600, 3800 Curing quality (Kg) 12470 Cargo size (mm) × × Rated passenger (person) Quasi-trailer total mass (Kg) Number of passengers in the cab (person) 2,3 Load mass utilization factor Approach angle / departure angle (°) 20/11 Front overhang / rear overhang (mm) 1500/3090, 1500/2690 Number of axes 4 wheelbase (mm) 2050+4000+1350,2050+4400+1350 Axle load (Kg) 6500/6500/18000 (two-axis group) Maximum speed (Km/h) 80 Others 1. The vehicle is suitable for dangerous goods transportation; transportation medium: gasoline, category number: 3, density 700 kg / cubic meter, effective volume of tank body 27.5 cubic meters, tank dimensions (length × width × height) (mm ) 9200 × 2350 × 1700. 2, side and rear protective materials cold-formed steel / Q235, side protective bolt connection; rear protective welding, section height 120mm, section width 50mm, lower edge 500mm high. 3. Optional cab with chassis; only the chassis of muffler front, speed limiter, front disc brake and radial tire; the vehicle should be equipped with a tachograph with satellite positioning function. ABS model / manufacturer: 3631010-C2000 / East Cochnoll Commercial Vehicle Brake System (Shiyan) Co., Ltd. Creasing Rule,Creasing Rule For Flat Bed,Flat Bed Cutting 2Pt,3Pt 23.3Mm Creasing Rule Jiangyin Mitoo Precise Co.,Ltd. , https://www.mitoosteel.com
